SKU: Nano_430_DC

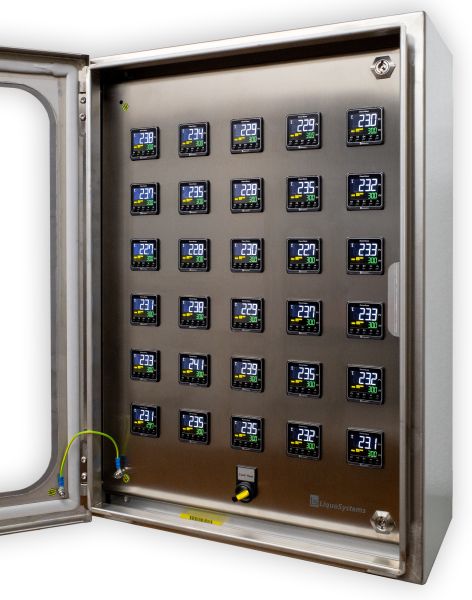

Nano Cabinet: Central fermentation control in a stainless steel cabinet

  • Stainless steel control cabinet with viewing door
  • Wall bracket: Included
  • With 10, 20, 30, 40, or 50 Nano units
  • Switching outputs in 24 V AC or DC
  • Control units with large and bright display.
  • Actual and Setpoint Display
  • Measuring range: -9.9°…+99.9°C
  • Controller types: PID
  • Operating Modes: Cooling, Heating
  • 1 x potential-free contact for cooling / heating demand
  • 1 x central selector switch for either cooling or heating
  • Supply: 90 – 240V AC +/- 10%
  • Protection class: IP66
  • Central operation in the network with Nano Terminal via data line

Additional requirements per tank:

  • Nano Box terminal box
  • Motorized ball valve or solenoid valve
  • Temperature sensor

Price range: 8.100,00 € through 9.450,00 € excl. VAT

Delivery time 3-5 weeks

Modern central fermentation control Nano Cabinet by LiquoSystems

Modern central fermentation control Nano Cabinet: as the name suggests, for central use in the cellar, with actual and target temperature display. The control regulates the coolant supply and ensures compliance with the target temperature in fermentation processes. Further applications include tank storage and tartar stabilization. Temperature sensors permanently transmit the actual temperature to the microprocessor for comparison with the target temperature, with an accuracy of +/- 0.5 degrees Celsius.

Expansion with Nano Terminal for Enhanced Convenience

Single or multiple Nano Tank controls can be expanded and centrally operated with the additional Nano Terminal unit. This creates more networking possibilities and increased operating convenience. For professional wiring, we recommend the Nano Box.
